Executive Summary
Client: A premium custom furniture manufacturer in the United States.
Application: High-demand CNC Router Vacuum Hold-Down.
Key Result: Deployed a parallel dual-pump vacuum system, eliminating workpiece shifting, achieving zero material scrap, and maximizing CNC feed rates.
The Challenge: Massive Air Leakage and Insufficient Suction For a high-end custom furniture workshop, precision is everything. The client was operating heavy-duty CNC routers to process large, porous materials like MDF and solid wood panels. However, their existing single-pump setup could not keep up with the massive air leakage inherent in routing porous wood.
Because the vacuum flow was insufficient, the hold-down pressure would drop drastically during high-speed cutting. This caused the panels to shift, leading to inaccurate cuts, expensive material waste, and forced machine downtime to manually clamp the workpieces.
Why They Chose Golden Bridge The client realized that simply buying another standalone pump would not solve the root problem. They needed a manufacturer capable of designing a comprehensive engineering solution. They chose Golden Bridge because of our proven expertise in designing centralized vacuum systems specifically for the high-flow demands of the woodworking industry.

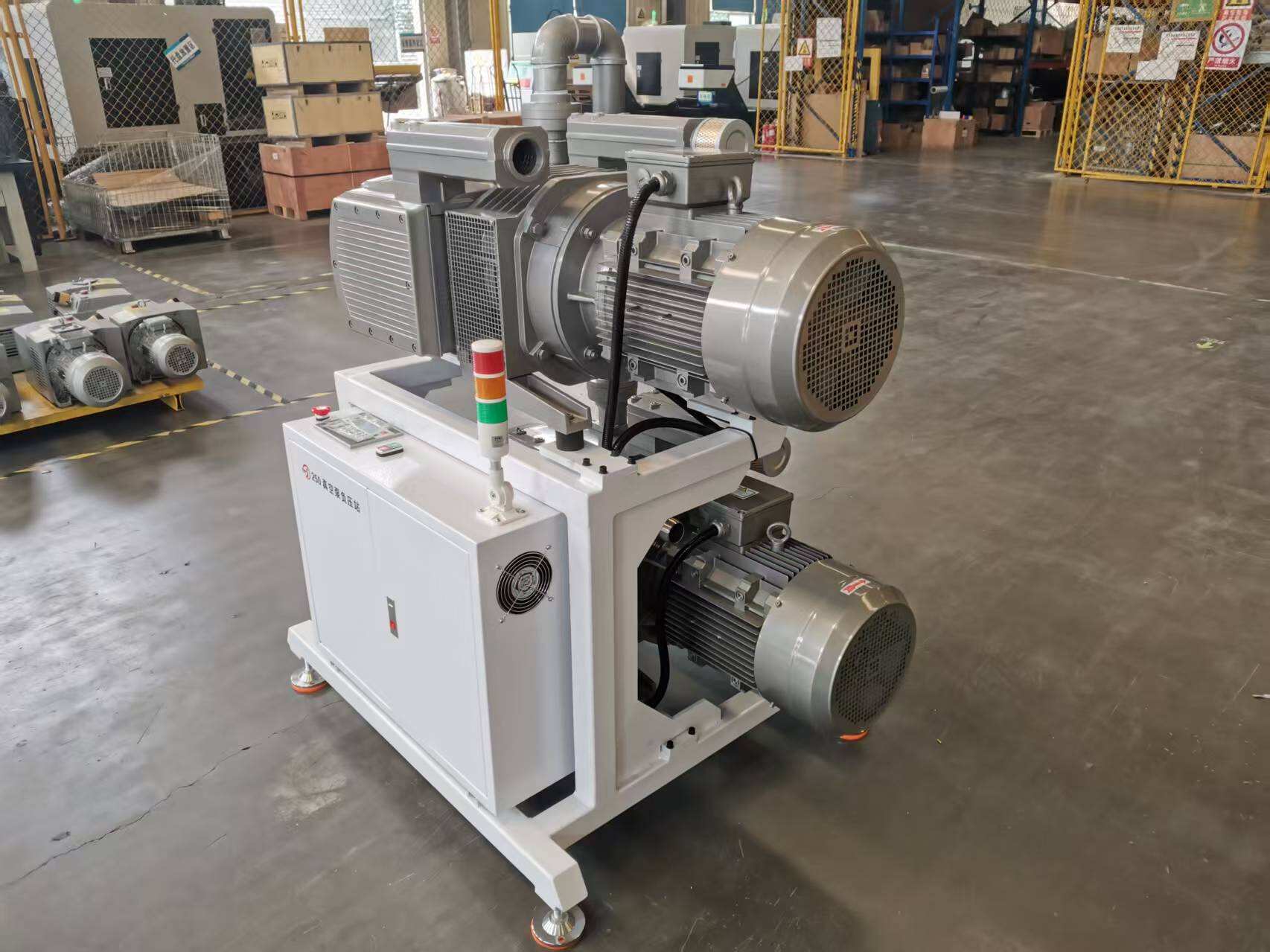

Our Solution: The KVF250 Dual-Pump Parallel Vacuum System After evaluating their CNC table dimensions and material porosity, our engineering team determined that a single pump was insufficient for their total air volume requirements. We designed and delivered a customized Dual KVF250 Parallel Vacuum System.

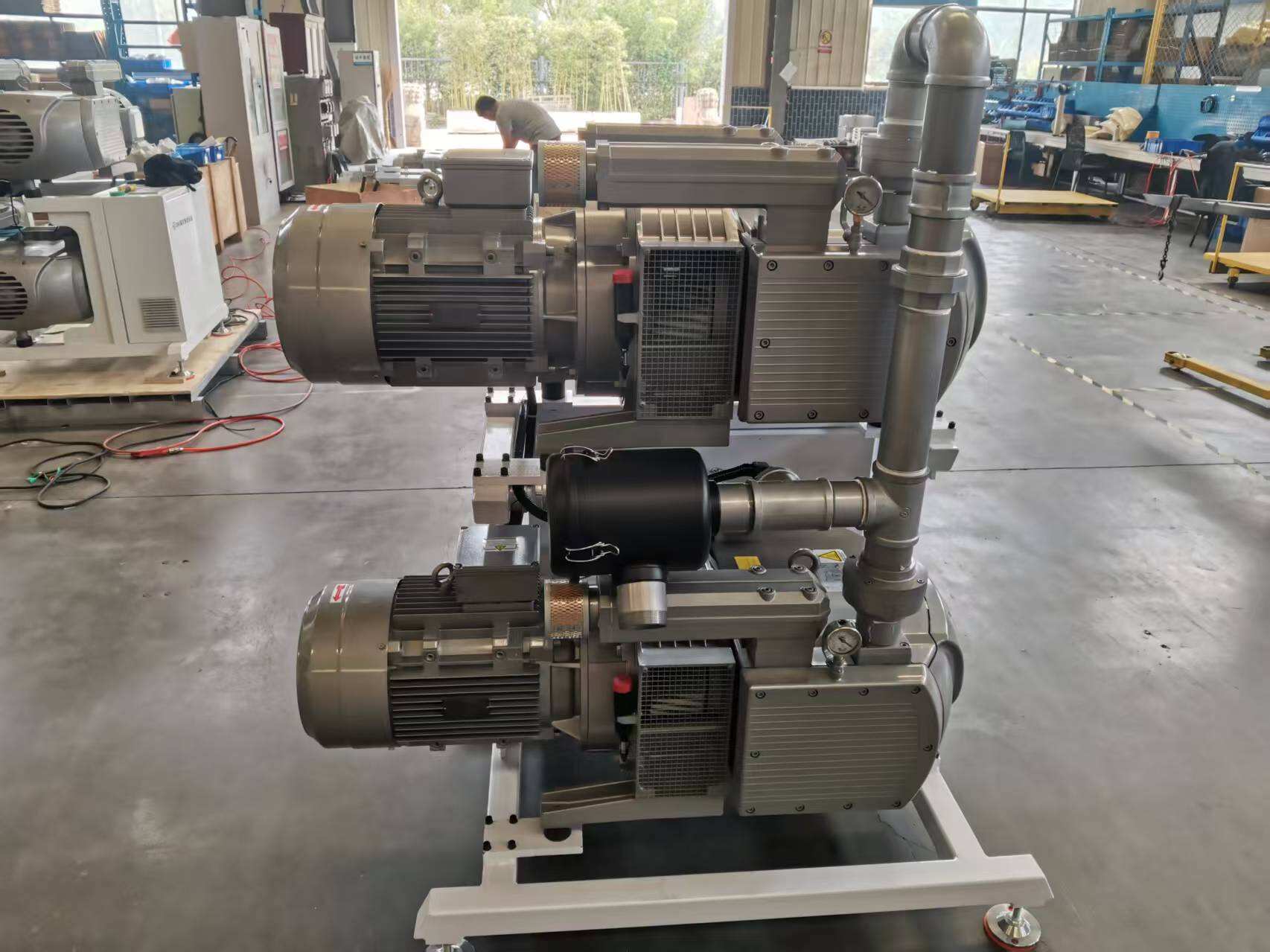

Double the Pumping Capacity: By connecting two heavy-duty KVF250 rotary vane pumps in a parallel configuration, the system delivers massive, continuous airflow to instantly compensate for any air loss through the porous wood.
Unshakable Clamping Force: The synchronized system maintains a deep, stable vacuum level across the entire CNC spoilboard, locking down even the most warped or difficult panels.
Industrial Redundancy: The dual-pump design ensures high reliability. It effortlessly handles peak loads and provides peace of mind for continuous, heavy-duty production shifts.
Quantifiable Results The integration of the dual KVF250 system completely transformed their CNC operations:
Zero Material Shifting: The multiplied suction power eliminated all part movement, securing perfect cuts every time.
Maximized CNC Productivity: Operators now run the routers at maximum optimal feed rates without pausing to check material alignment.
Significant Cost Savings: Material scrap rate was reduced to near zero, rapidly paying for the system upgrade.
Client Testimonial "The difference in clamping power with this dual-pump setup is night and day. Since installing the Golden Bridge parallel vacuum system, we do not have to worry about panels slipping mid-cut, even on highly porous MDF. It holds everything perfectly flat and handles our heavy workload without breaking a sweat. It is a solid, professional-grade engineering solution." — Production Manager, US Custom Furniture Shop
Get Your Custom CNC Vacuum Solution Are you experiencing hold-down issues on your multi-zone CNC routers? Do not let weak suction compromise your production line. Contact the Golden Bridge engineering team today for a free consultation, and let us design the exact parallel vacuum system your factory needs.
