Designed for general manufacturing, CNC machining, and auto repair. This compact 4-in-1 system provides reliable, clean, and dry pneumatic power while saving valuable floor space.
Versatile Pressure: Available from 8 to 12.5 Bar (116 - 181 PSI) to suit diverse industrial applications.
All-in-One Design: Built-in rotary screw compressor, air tank, refrigerated dryer, and precision filters.
Clean & Dry Air Output: Effectively removes moisture and oil particles to protect your pneumatic tools and cylinders from rust.
Energy Efficient: Smart PM VSD (Variable Speed Drive) technology reduces power consumption by up to 35%.

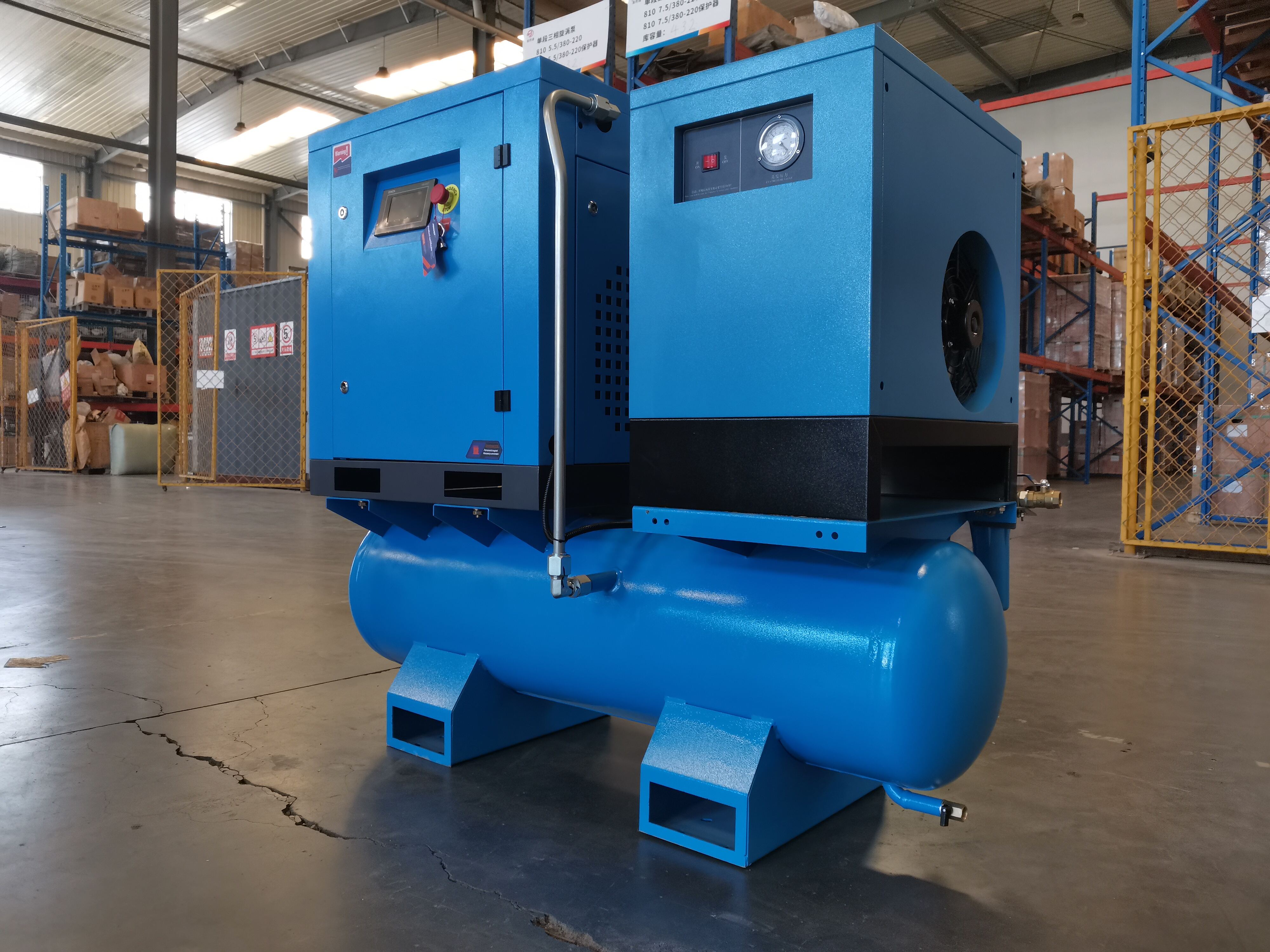

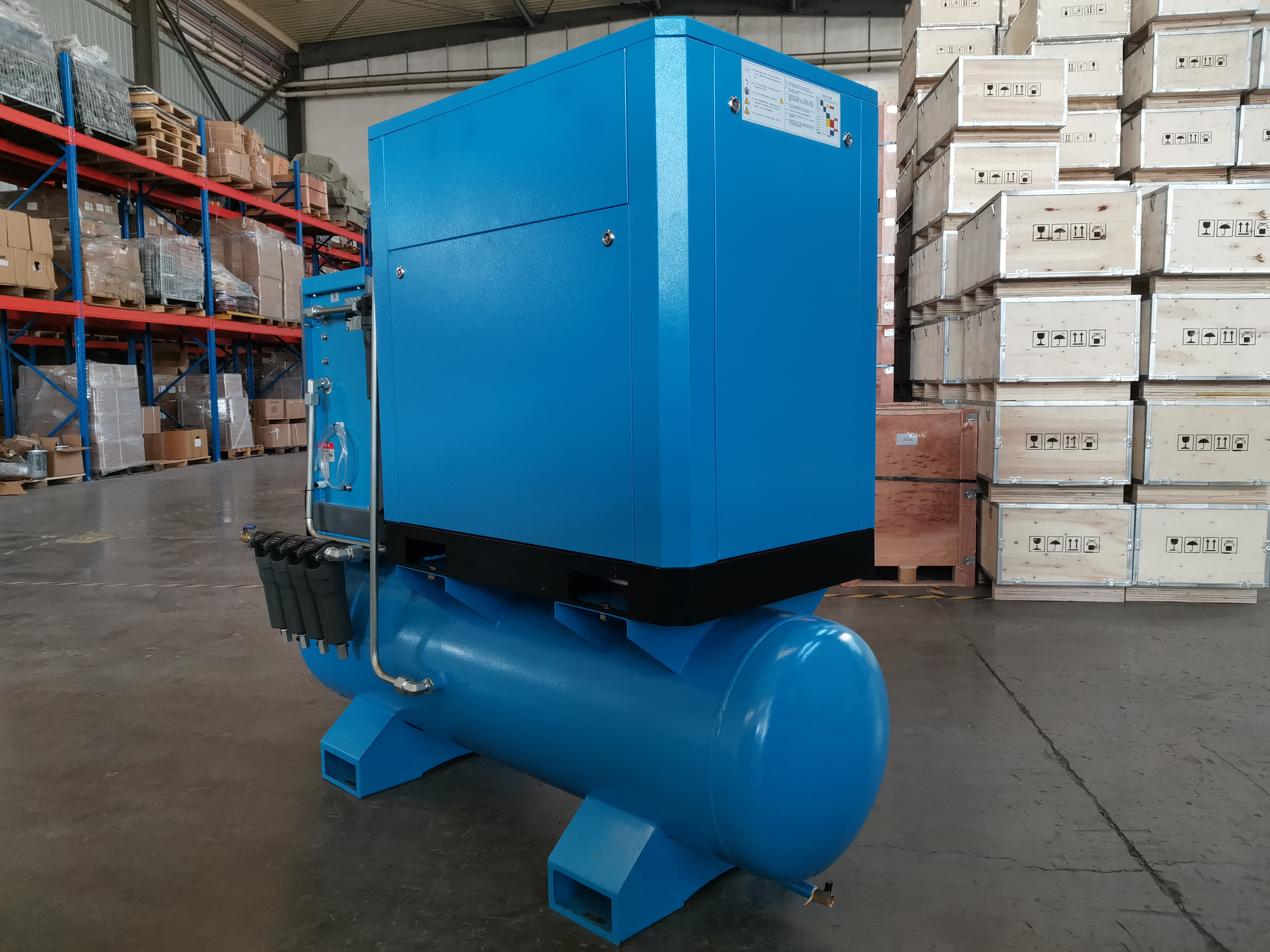

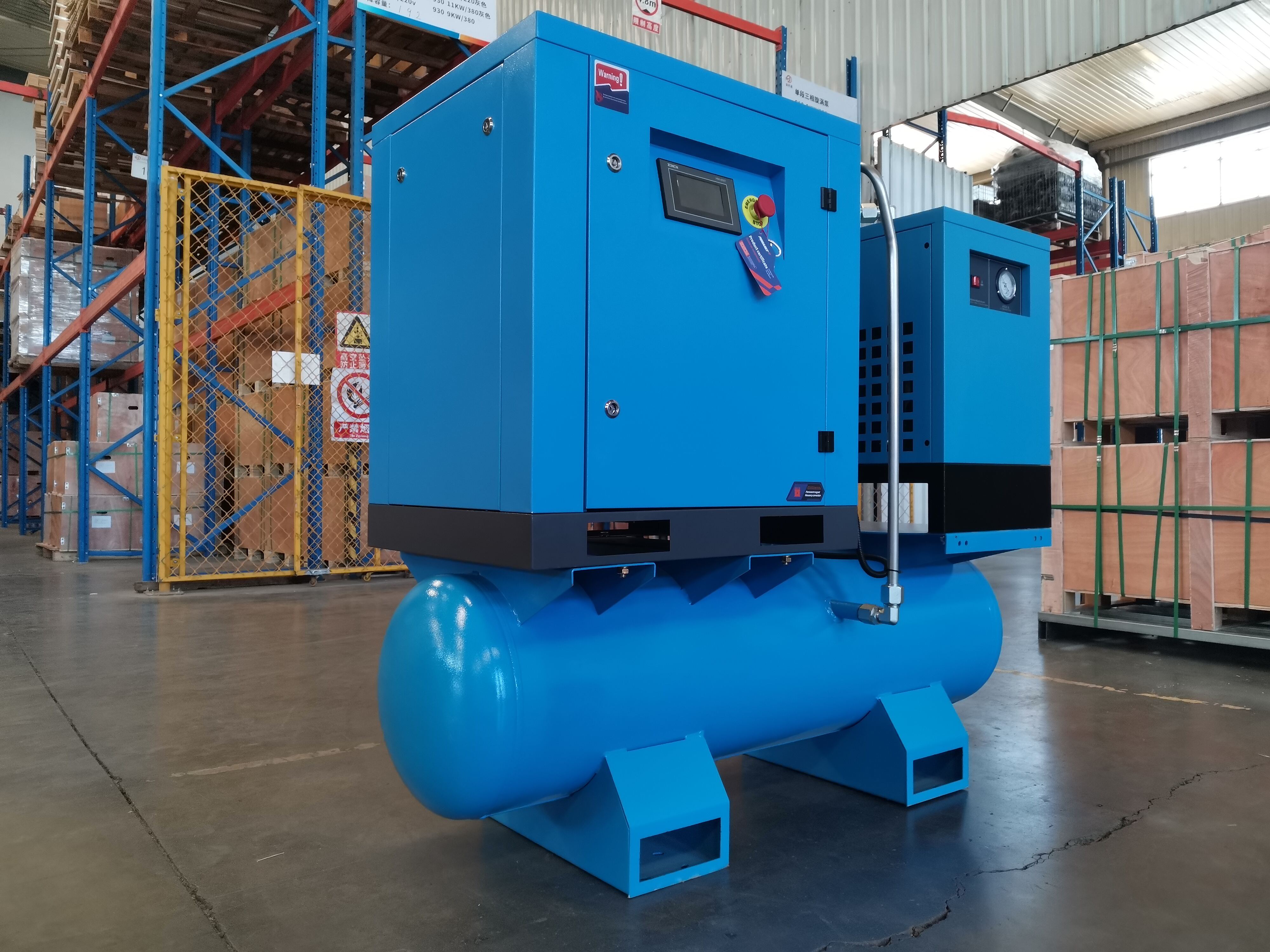

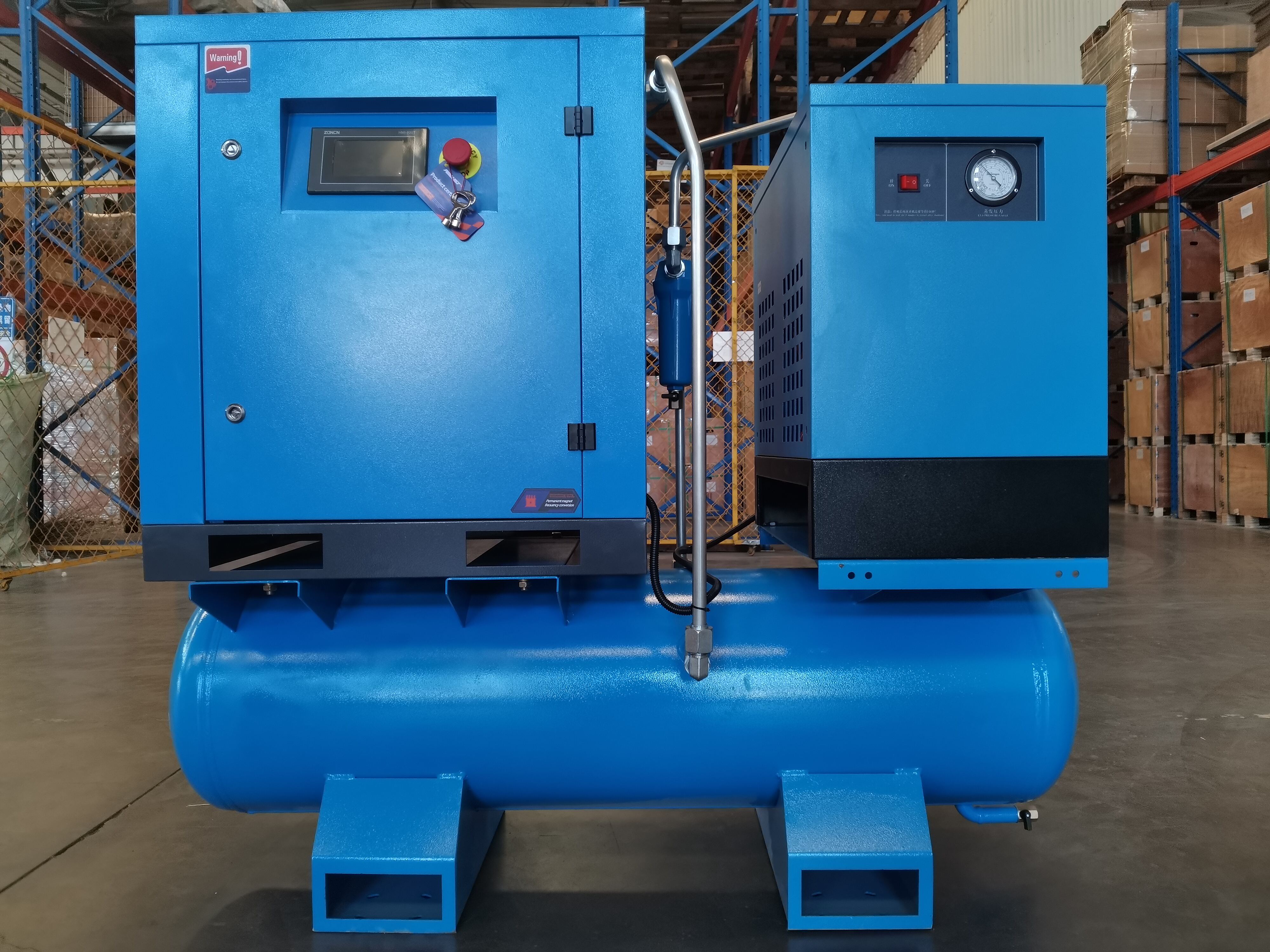

The Smart, All-in-One Pneumatic Power Station Finding space for a compressor, air tank, refrigerated dryer, and filtration system can be a headache for many manufacturing facilities. Our 4-in-1 Integrated Skid-Mounted Air Compressor solves this by combining all essential air treatment components into one compact, plug-and-play unit. Designed to deliver continuous and clean pneumatic power from 0.8 to 1.25 MPa (approx. 116 to 181 PSI), it prevents moisture and contaminants from damaging your expensive CNC machines, pneumatic tools, and automated assembly lines.
Compact & Plug-and-Play: The all-in-one design saves up to 50% of valuable floor space. No complex piping networks required—just supply power and connect to your air network.
Clean & Dry Air Output: The integrated high-efficiency refrigerated dryer and precision filters remove moisture and oil particles, ensuring flawless spray painting and preventing rust in pneumatic cylinders.
PM VSD Energy Saving: The intelligent Permanent Magnet Variable Speed Drive automatically adapts motor speed to your fluctuating air demand, reducing energy waste by up to 35%.
Quiet & Low Vibration: Enclosed in a sound-dampening canopy with a bearing-free direct-drive motor, it operates quietly enough to be placed directly on the factory floor.
Ideal For Various Industries:
CNC Machining & Precision Engineering
Automotive Repair & Spray Painting
Packaging & Printing Machinery
Textile & Garment Manufacturing
Technical Specifications (Standard Industrial Series)
| Model | Motor Power(kW / HP) | Max Pressure(Bar / PSI) | Air Flow / Capacity(m³/min / CFM) | Tank Volume(L) | Caliber | NoisedB(A) | Dimensions(LWH mm) | Weight(KG) |
| JKT-7.5YB-8S | 7.5 / 10 | 8.0 / 116 | 0.4-1.1 / 14.1-38.8 | 200 | G3/4 | 62±2 | 1610*760*1920 | 265 |
| JKT-7.5YB-10S | 7.5 / 10 | 10.0 / 145 | 0.3-0.9 / 10.6-31.8 | 200 | G3/4 | 62±2 | 1610*760*1920 | 265 |
| JKT-7.5YB-12.5S | 7.5 / 10 | 12.5 / 181 | 0.25-0.8 / 8.8-28.2 | 200 | G3/4 | 62±2 | 1610*760*1920 | 265 |
| JKT-11YB-8S | 11 / 15 | 8.0 / 116 | 0.6-1.8 / 21.2-63.5 | 340 | G3/4 | 65±2 | 1640*760*1920 | 370 |
| JKT-11YB-10S | 11 / 15 | 10.0 / 145 | 0.5-1.6 / 17.7-56.5 | 340 | G3/4 | 65±2 | 1640*760*1920 | 370 |
| JKT-11YB-12.5S | 11 / 15 | 12.5 / 181 | 0.5-1.5 / 17.7-53.0 | 340 | G3/4 | 65±2 | 1640*760*1920 | 370 |
| JKT-15YB-8S | 15 / 20 | 8.0 / 116 | 0.8-2.4 / 28.2-84.7 | 340 | G3/4 | 65±2 | 1640*760*1920 | 375 |
| JKT-15YB-10S | 15 / 20 | 10.0 / 145 | 0.7-2.2 / 24.7-77.7 | 340 | G3/4 | 65±2 | 1640*760*1920 | 375 |
| JKT-15YB-12.5S | 15 / 20 | 12.5 / 181 | 0.7-2.0 / 24.7-70.6 | 340 | G3/4 | 65±2 | 1640*760*1920 | 375 |
| JKT-22YB-8S | 22 / 30 | 8.0 / 116 | 1.2-3.6 / 42.4-127.1 | 340 | G1/2 | 65±2 | 1820*760*1920 | 506 |
| JKT-22YB-10S | 22 / 30 | 10.0 / 145 | 1.1-3.2 / 38.8-113.0 | 340 | G1/2 | 65±2 | 1820*760*1920 | 506 |
| JKT-22YB-12.5S | 22 / 30 | 12.5 / 181 | 1.0-3.0 / 35.3-105.9 | 340 | G1/2 | 65±2 | 1820*760*1920 | 506 |
As a direct manufacturing source with nearly two decades of expertise, Jinan Golden Bridge Precision Machinery Co., Ltd. ensures stringent quality control over every unit produced.
Strategic Inventory Nodes for Faster Dispatch To shorten lead times for our most highly demanded standard models, we maintain strategic leased inventory nodes in the United States, Mexico, and Turkey.
Note: Local inventory is limited to select hot-selling models. All local dispatch operations, customized orders, and comprehensive technical support are centrally verified and managed directly by our Jinan Headquarters engineering team. Please contact us to check real-time stock availability for your region.
Tip: Please let us know your required pressure (Bar/PSI) and application so we can match the perfect model for your facility.
