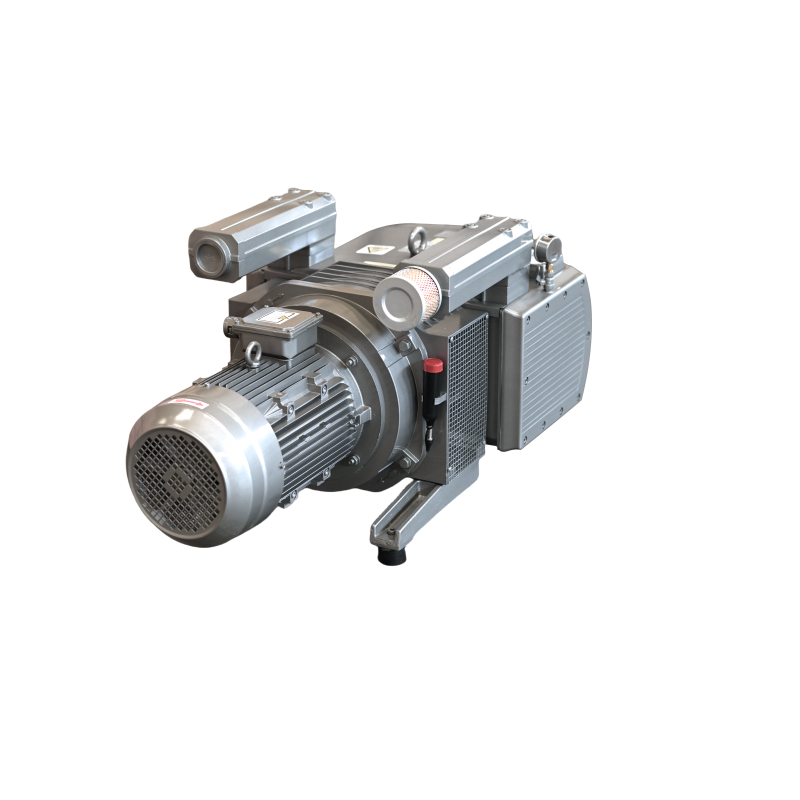

High-performance KVF250 Dry Rotary Vane Vacuum Pump. Specs: 5.5kW motor, Max Airflow 250 m³/h (50Hz) / 300 m³/h (60Hz). 100% Oil-free design with long-life carbon vanes. Ideal for printing presses, vacuum lifting, and packaging machines.
This model pump is a single suction pump,high gas compression ratio, effective gas compression, good steam transportation and recovery. It widely used in Metallurgical, pharmaceutical, chemical industries,etc.. For the carbon vane, it can be used around 3000hours, then you replace the carbon vane because the carbon vane is with friction. It is a consumable part.Other parts can be used for a long time. Bearings need to be refueled regularly.
Note
Any custom size and color are acceptable,Provide OEM and ODM Service
| Type | Air flow（m³/h） | Motor power（kw） | Motor speed（RPM-1） | Vacuum（mbar） |
Noise Level [dB(A)] |
Weight（kg） | ||||
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | |||
| KVF200 | 190 | 218 | 5.5 | 6.6 | 1430 | 1720 | 200 | 75 | 77 | 133 |
| KVF250 | 250 | 300 | 5.5 | 6.6 | 960 | 1150 | 200 | 81 | 81 | 276 |
| KVF265 | 265 | 300 | 7.5 | 8.6 | 960 | 1150 | 200 | 81 | 81 | 280 |
| KVF360 | 351 | 402 | 11.0 | 13.2 | 1430 | 1720 | 250 | 80.5 | 82.5 | 256 |
Reasonable price
Low noise level
Excellent ultimate vacuum
Simplified repairs and maintenance
Improved internally installed inlet check valve system
Constant pressure oil circulating system
Convenient gas ballast valve control
High standard of corrosion protection
New production techniques for improved performance and serviceability
Convenient oil level checking and changing
